Carousel Production Line for Precast Concrete Wall Panels



Mana's battery mould system forms the core of this carousel production line, enabling an organised and automated vertical casting process for precast concrete wall panels. The integrated production line is designed to support large-scale manufacturing with consistent product quality and efficient production workflows.

Applications

The production line is designed for the manufacture of foamed concrete panels, lightweight aggregate concrete panels and composite sandwich panels for internal and external wall applications in framed buildings.

Key Production Data

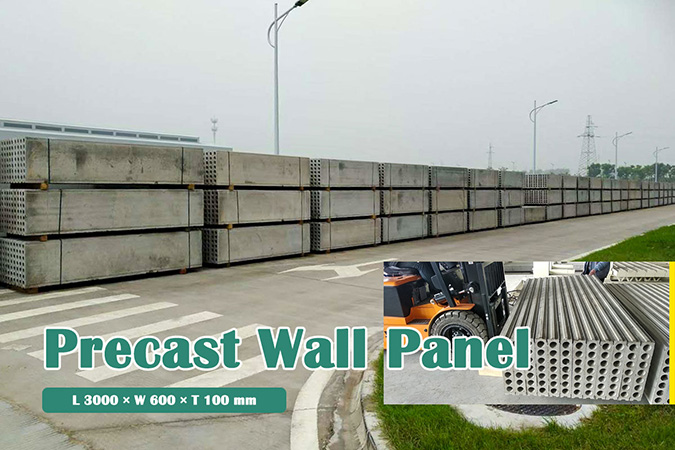

  1. Production Capacity: Up to 500,000 m2 per year, based on panel dimensions of 3,000 × 600 × 100 mm.

  2. Labour Requirements: 8 operators per 8-hour shift.

Main Equipment

Battery Mould System: Features a robust steel structure and accurately fitted mould joints designed to minimise grout leakage during concrete casting.

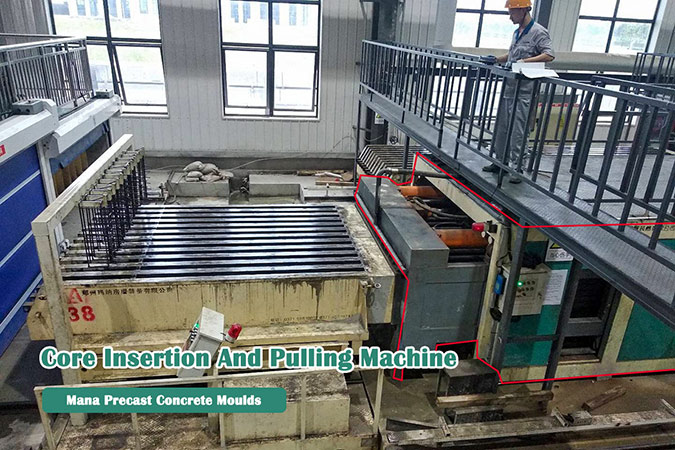

Hydraulic core-pulling machine

Hydraulic Core Extraction Machine: Uses hydraulic operation to withdraw the cores and facilitate demoulding.

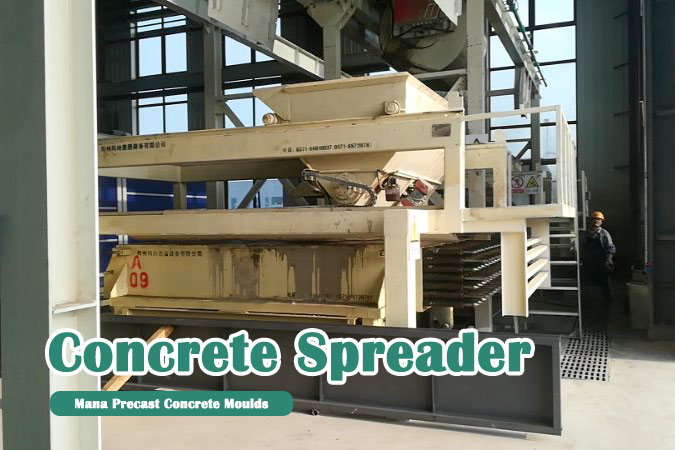

Material distribution system

Concrete Spreader: Distributes the concrete mix evenly within the mould cavities.

Surface Finishing Machine: Provides automated surface finishing for the wall panels.

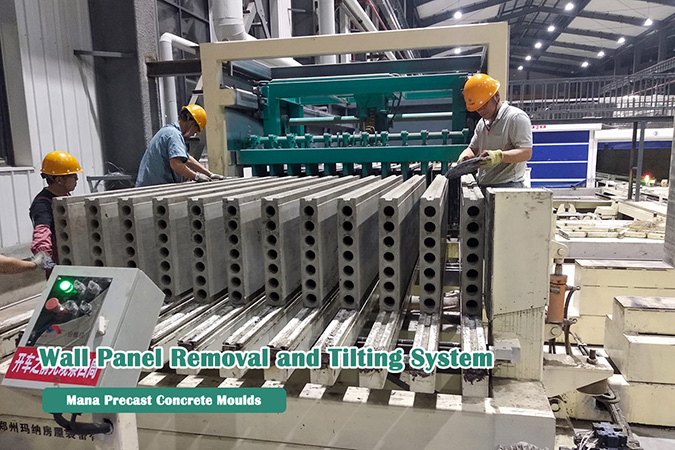

tilting equipment

Panel Closing and Tilting Machine: Performs the panel closing operation and 180° tilting process.

Panel Extraction System: Integrates automatic panel removal, mould cleaning and mould release agent application.


Transfer Carriage: Self-propelled and wirelessly controlled, with a positioning system for accurate movement between production stations.

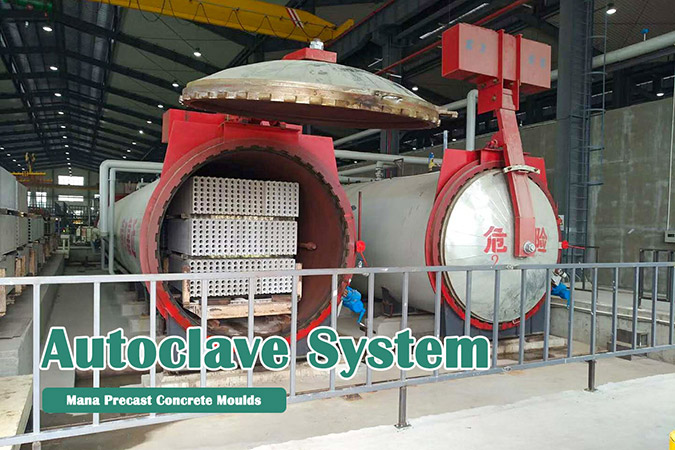

curing chamber

Curing Chamber: Provides a controlled curing environment to support the required curing process and production cycle.
