Guangzhou Rectangular Jacking Pipe Segment Mould Project Overview

The rectangular pipe jacking method is a non-excavation tunneling technology used to construct large underground spaces. Compared with traditional methods such as open-cut excavation and shield tunneling, it offers several key advantages:

• Lower overall construction cost

• Minimal traffic disruption

• Environmentally friendly construction

Thanks to these benefits, the pipe jacking method has become an indispensable solution for municipal engineering, especially when crossing busy traffic lines, rivers, or areas with dense aboveground and underground structures.

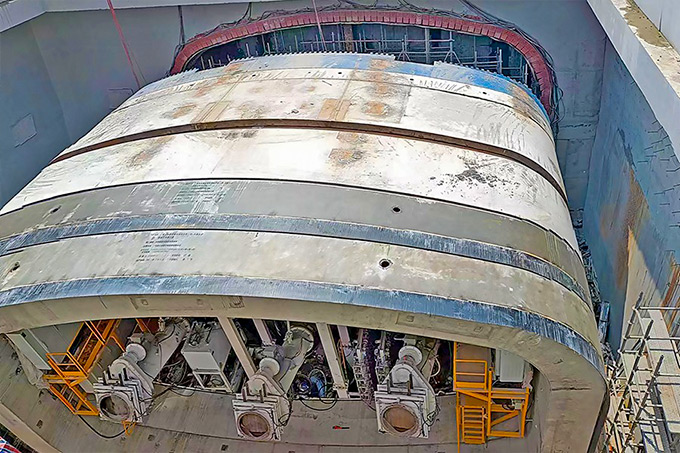

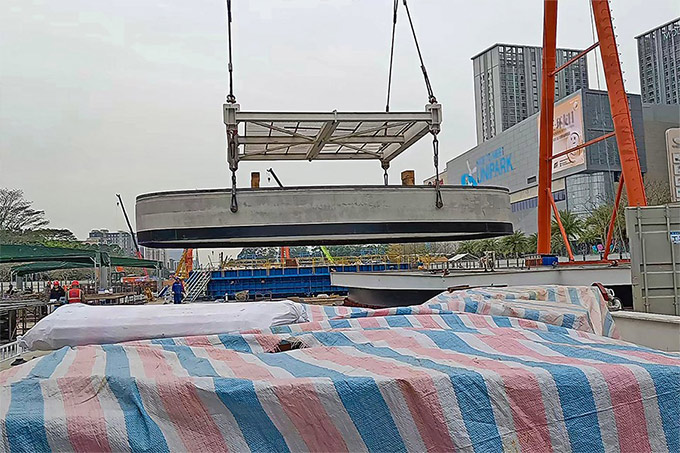

Characteristics of Large Rectangular Jacking Pipe Segments

Large-diameter rectangular jacking concrete segments have unique engineering requirements:

• Extra-large cross-sectional dimensions and heavy self-weight

• High structural strength and precision standards

• Complex production process with strict quality requirements

• Built-in self-waterproof performance, durability, and adaptability to withstand jacking construction

These challenges make the mould system a critical part of ensuring segment quality, precision, and performance.

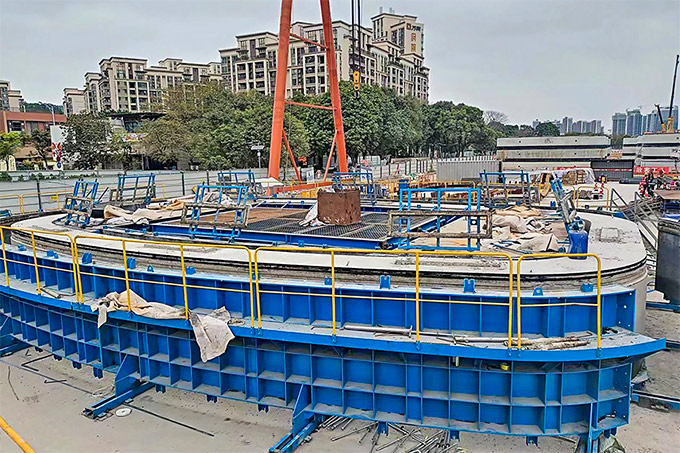

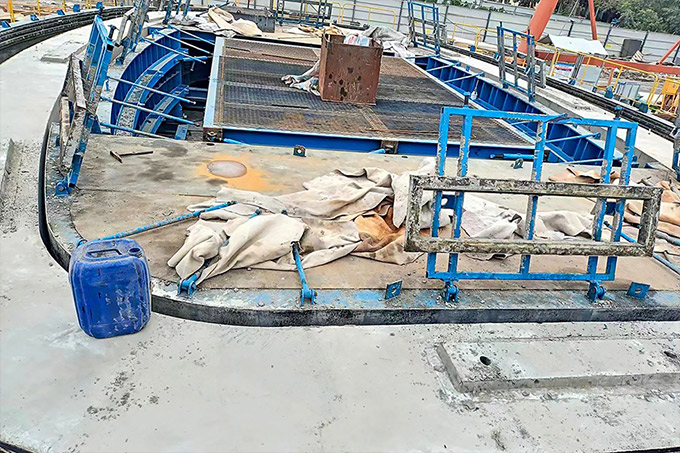

Mana Tunnel Segment Mould Features

1. High-Precision Sectional Design

• Advanced sectional mould design ensures accuracy and stability.

• Breaks away from traditional mould design concepts.

• Effectively solves the transportation difficulties of oversized moulds.

2. Optimized Structure and Easy Assembly

• Outer mould adopts a four-section design.

• Central semi-circular mould enables easy disassembly.

• The entire mould can be assembled in two halves, supporting both whole and split installation.

• Guarantees smooth surface finish and consistent segment quality.

3. Efficiency and Safety

• Inner mould adopts an adjustable steel structure, improving installation efficiency.

• Automatic contraction under telescopic rod operation.

• Smooth and quick opening/closing of inner and outer moulds.

• Step-sealed joints ensure segment integrity and waterproofing.

Conclusion

With the rapid development of underground infrastructure, the rectangular pipe jacking method has proven to be an efficient, reliable, and eco-friendly tunneling solution. The Mana tunnel segment mould system not only meets the high strength and precision requirements of large rectangular concrete pipes but also ensures ease of transportation, assembly, and long-term durability.
