Gypsum Hollow Wall Panel Production Line


  • High precision production
  • Simple operation process
  • Cost-effective for small-scale production
Parameter
Value
Annual Capacity 100,000 – 300,000 m²/year
Panel Size (L×W×T) 3000 × 600 × (90–200) mm
Casting Plate Material Mirror-finish Stainless Steel
Dimensional Tolerance±1.0 mm / m
Flatness Tolerance±1.5 mm over 3 m
Required Production Area300–600 m²
Labor Requirement4–8 operators per shift

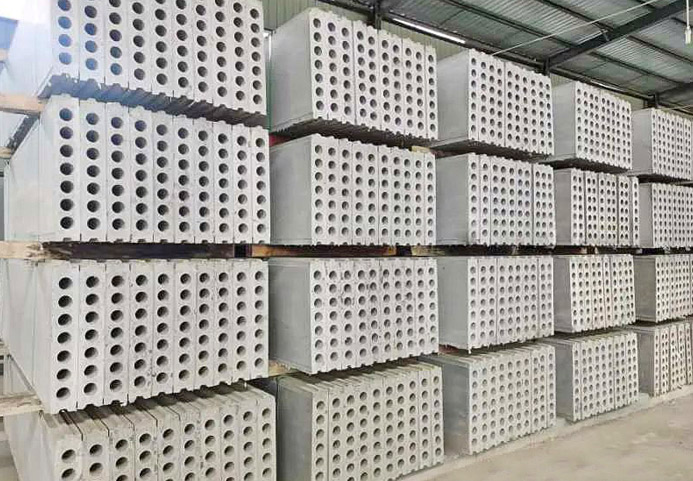

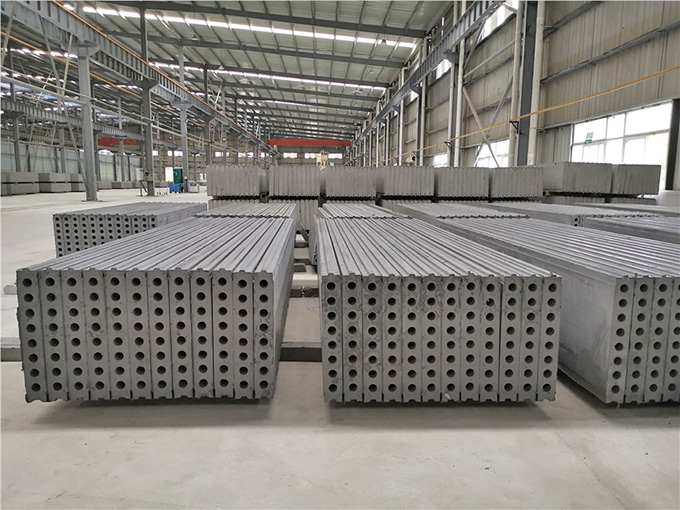

Gypsum hollow wall panels are lightweight partition materials primarily made from gypsum, with additives and fibres incorporated to improve their properties. They are manufactured through a series of processes, including mixing, casting, core insertion and extraction, and setting. These panels are widely used as non-load-bearing interior partitions in residential, commercial and public buildings.


Advantages of Gypsum Hollow Wall Panels

  • Lightweight and High Strength: These panels combine a lightweight structure with adequate strength for non-load-bearing partition applications, helping reduce the dead load on buildings.

  • Fire Resistance: Gypsum has inherent fire-resistant properties. The fire performance of the finished panels depends on their composition, thickness and tested performance.

  • Environmental Performance: Gypsum panels can incorporate industrial by-product gypsum, depending on the material formulation, making use of secondary raw materials.

  • Quick and Easy Installation: The panels can be sawn, drilled and fixed using suitable tools and fasteners, helping simplify installation and reduce construction time and labour requirements.

  • Thermal and Acoustic Performance: The hollow structure and material composition can contribute to thermal and acoustic insulation. Actual performance depends on panel design and must be verified through testing.

  • Cost-Effective: Their lightweight design and relatively quick installation can help reduce transportation, handling and labour costs.

Overview of Mana M30 Gypsum Wall Panel Production Line

The MANA M30 gypsum wall panel production line was developed by Mana based on more than 20 years of experience in battery mould technology for wall panel production. It combines practical production experience with the material characteristics of gypsum to provide an efficient manufacturing solution.

The production line features a modular equipment configuration, a high degree of automation and an integrated production process. Its configuration can be adapted to different production requirements and factory conditions.

Core Equipment

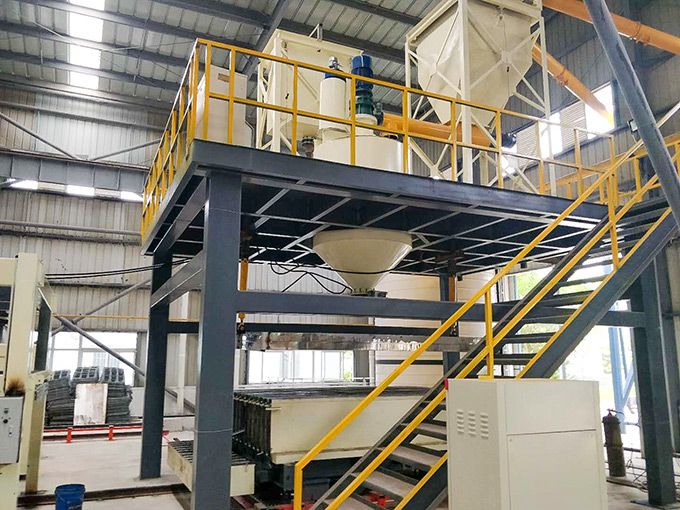

Mixing System

Mixing-System

The mixing system uses a vertical twin-shaft mixer with a mirror-polished stainless steel mixing barrel and mixing blades. The stainless steel surfaces offer good corrosion resistance and make the equipment easier to clean.

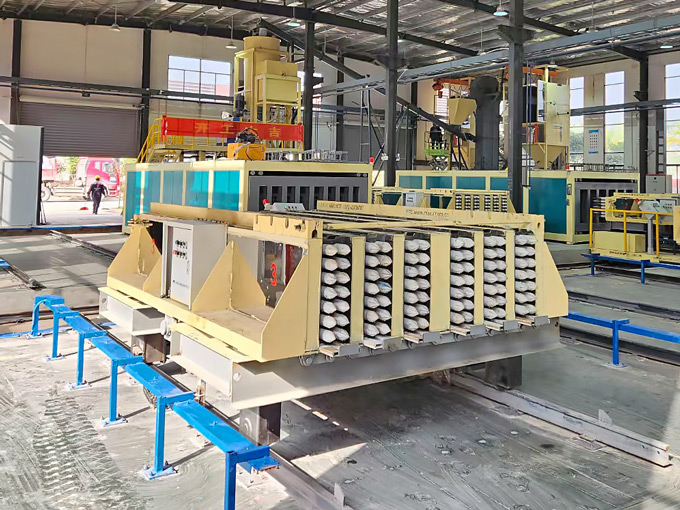

Battery Mould


The battery mould incorporates Mana's patented slurry-sealing technology, designed to minimise leakage and ensure accurate panel forming.

Each mould can produce either 12 panels with a thickness of 100 mm or 6 panels with a thickness of 200 mm in a single production cycle. The panel-contact surfaces are made of mirror-polished stainless steel, offering corrosion resistance, easy cleaning and reduced material adhesion.

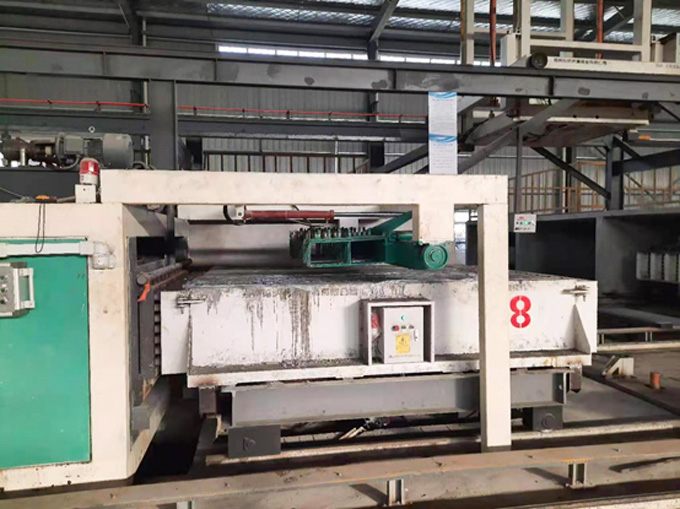

Hydraulic Core Pulling Machine


The hydraulic core pulling machine extracts the core tubes in a single operation under remote control, reducing manual intervention during production.

Its high pulling force helps extract core tubes even when resistance occurs, improving operational efficiency and reducing the risks associated with manual core extraction.

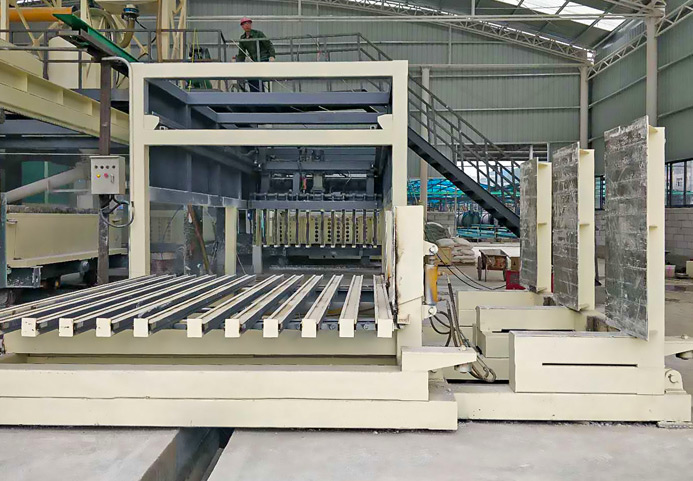

Panel Handling System


The drag-board mechanism transfers the bottom moulds and panels to the panel closing and turning machine. After the bottom moulds are brought together and turned over, the panels are removed. The bottom moulds then automatically separate and return to the battery mould for the next production cycle.

Production Process

  1. Mould Preparation and Assembly: At the casting station, the battery mould is cleaned and closed. The core tubes are inserted, release agent is applied, and reinforcement mesh is positioned.

  2. Casting and Surface Finishing: The prepared gypsum slurry is poured into the mould cavities, followed by surface scraping to achieve the required finish.

  3. Core Extraction: After casting, the core tubes are hydraulically extracted in a single operation.

  4. Setting and Demoulding: Once the gypsum material has set sufficiently, the mould is transferred to the demoulding station, where the finished hollow wall panels are removed.

  5. Panel Handling and Mould Return: The bottom moulds and panels are transferred to the panel closing and turning machine. After panel removal, the bottom moulds automatically separate and return to the battery mould for the next production cycle.
