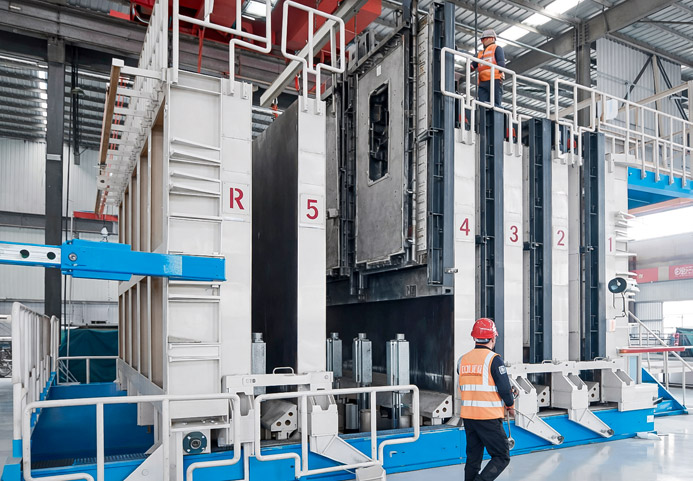

Vertical Battery Mould System


  • Space-Efficient Production
  • High-Quality Concrete Surface Finish
  • Multiple Panels per Casting Cycle
Parameter
Value
Number of Cells 6-20 (customisable)
Panel Size (L×W×T) 8000×4000×(100–200) mm
Automation LevelSemi-automatic
Dimensional Tolerance±1.0 mm / m
Flatness Tolerance±1.5 mm over 3 m
Vibration SystemBuilt-in Vibration System
Curing SystemOptional (steam / hot water)
Technical SupportGlobal Technical Support

Mana has developed a vertical battery mould system for the efficient production of precast concrete elements. Its key technical features include:

Flexible Mould Cell Configuration: The mould cell configuration can be adjusted to accommodate different component dimensions, including length, width and thickness, according to production requirements.

Automatic Hydraulic Opening and Closing: All movable mould panels are hydraulically operated, with automatic opening and closing, positioning and locking mechanisms to ensure accurate alignment and effective sealing during production.

Integrated Vibration System: Multiple externally mounted vibration motors provide controlled concrete compaction. Variable-frequency control and independent control of vibration zones allow vibration settings to be adjusted to suit different concrete mixes and production requirements.

Available Production Dimensions: Available in various effective production dimensions, including 3 m × 6 m, 3.4 m × 7 m and 3.7 m × 8 m. Custom dimensions are available upon request.

Applications

The system is designed for the vertical casting of flat precast concrete wall panels, including solid and sandwich panels.

Vertical Battery Mould System Features

Installed Electrical Power: The system has a total installed electrical power of 11 kW, providing the power required for its main operating functions.

Reduced Mould Requirements: The system can reduce the number of moulds required by approximately 25%, depending on the production configuration.

Labour Efficiency: The system requires 5 operators for production, excluding reinforcement processing and tying operations.

Production Efficiency: Integrates concrete forming, vibration and curing operations within the production cycle, reducing the need for certain manual operations.

Space Efficiency: The vertical casting arrangement can reduce the required production area by up to 70%, depending on the production layout and project requirements.

Sealed Shutters: The bottom and side shutters are fitted with silicone sealing strips as standard to minimise cement paste leakage during concrete casting.
