Precast Concrete Tilting Table


  • Hydraulic Tilting Demoulding
  • Precision-Machined Casting Surface
  • Heavy-Duty Steel Structure
  • Magnetic Shuttering System
  • Optional Integrated Curing System
ItemSpecification
Table Length6.0–10.0 m (customizable)
Table Width2.5 / 3.0 / 3.5 / 4.0 m (customizable)
Casting PlateS355 equivalent
Plate Thickness8 / 10 mm
Surface Flatness±1.5 mm over 3 m
Tilting AngleUp to 75°
Load Capacity650 kg/m²
Tilting SystemHydraulic system
Vibration SystemIntegrated vibrators (electric / pneumatic)
Heating SystemIntegrated heating pipes (optional)
Power Supply380V / 50Hz (customizable)
Safety SystemHydraulic lock valves

The Precast Concrete Tilting Table is designed for the production of wall panels, façade panels, slabs and other flat precast concrete elements. Featuring a hydraulic tilting mechanism with an angle of up to 75°, optional vibration systems and an optional curing system, it facilitates controlled demoulding and supports efficient production. Its robust steel structure and precision-finished working surface provide a stable platform for consistent precast concrete production.

Key Features

Hydraulic Tilting System: Provides a tilting angle of up to 75° to facilitate controlled demoulding of precast concrete elements.

Optional Vibration System: Available with pneumatic vibrators or high-frequency electric vibrators for effective concrete compaction.

Optional Curing System: Heating pipes can be integrated into the table to provide controlled heating during curing and potentially shorten curing cycles.

Modular and Relocatable Design: Designed for convenient installation and relocation to suit different production layouts.

Custom Formwork Solutions: Can be supplied with customised formwork to accommodate different precast concrete product types and dimensions.

Benefits

  • Controlled Demoulding: Hydraulic tilting facilitates element removal and helps reduce the risk of damage during demoulding.

  • Effective Concrete Compaction: Optional vibration systems support proper concrete consolidation and consistent casting quality.

  • Improved Curing Efficiency: The optional curing system provides controlled heating and may shorten curing cycles, depending on the concrete mix and curing conditions.

  • Reliable Industrial Performance: Robust steel construction supports demanding precast concrete production operations.

Applications

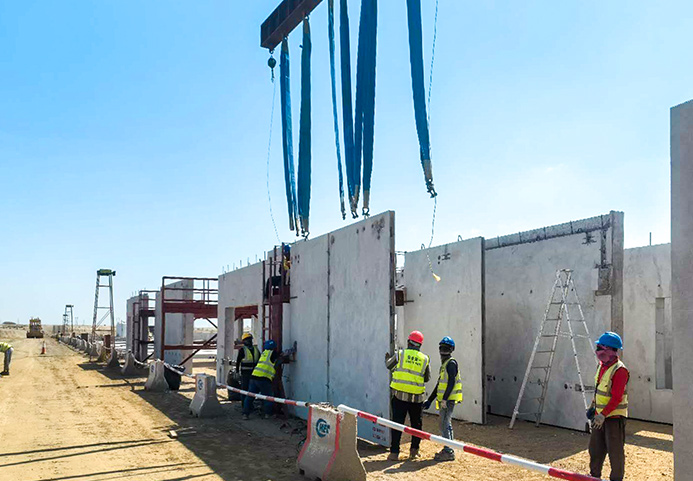

Suitable for the production of precast wall panels, sandwich wall panels, architectural façade panels, floor slabs, balcony slabs, utility components, infrastructure components and other customised flat precast concrete products.
